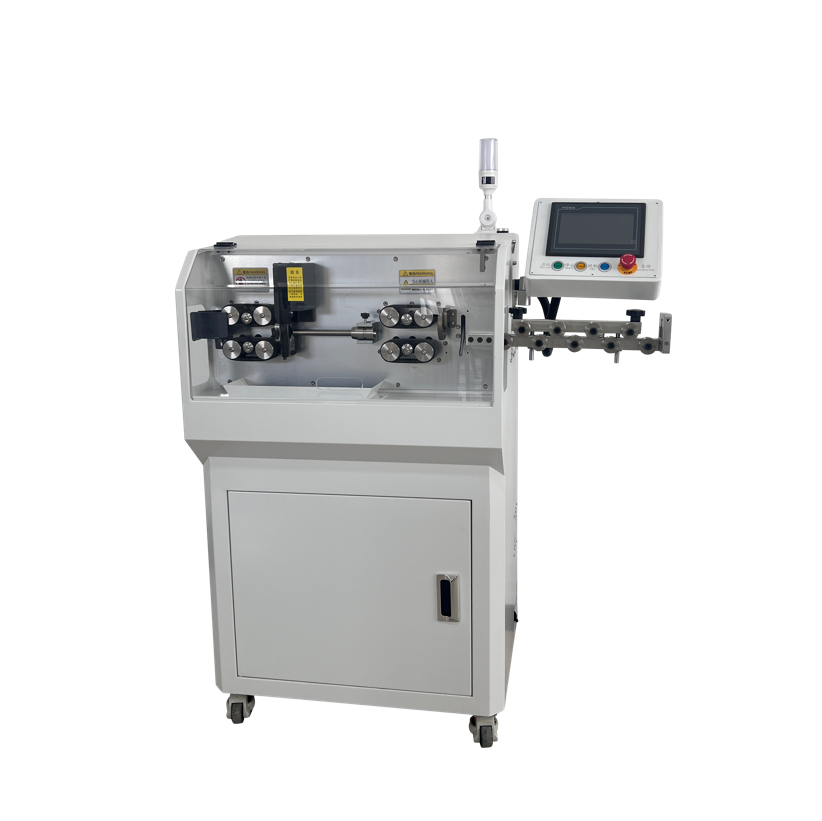

70mm SQ BV Cable Stripping Machine with 7 Inch PLC Touch Screen for 2.5mm2-70mm2 Wires

Name: 70mm SQ BV Cable Stripping Machine with 7 Inch PLC Touch Screen for 25mm270mm2 Wires
Brand: Junsheng
Price: 2180 USD

Quality 70mm SQ BV Cable Stripping Machine with 7 Inch PLC Touch Screen for 2.5mm2-70mm2 Wires wholesale

Brand Name : Junsheng

Model Number : HR-70STB

Certification : CE

Place of Origin : China

MOQ : 1

Price : 2180

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 500 Set per Month

Delivery Time : 5-8 work day

Packaging Details : Export Wooden Case

Contact Now

70mm SQ BV Cable Cutting Stripping Machine

70mm SQ BV Cable Stripping Machine with 7 Inch PLC Touch Screen for 2.5mm2-70mm2 Wires

Product Overview

High-performance 70mm SQ BV cable cutting and stripping machine offering exceptional output at competitive pricing. Designed for industrial applications requiring precision and efficiency.

Technical Specifications

Voltage	220V
Power	800W
Display	7 inch PLC touch screen
Cable Size Range	2.5mm² - 70mm²
Sheathed Cable OD	18mm
Max Pipe OD	20mm
Cut Length	99999mm
Front Strip Length	1-300mm
Rear Strip Length	1-150mm
Min Coat Length	50mm
Production Output	800-1000 pieces/hour
Memory Capacity	200 program storage
Drive Mechanism	12 wheels driving system
Blade Material	High Speed Steel
Dimensions	700 * 640 * 480mm
Weight	100KG

Key Features

High-precision cutting and stripping for cables up to 70mm²
Advanced PLC touch screen control for easy operation
High-speed production capability (800-1000 pieces/hour)
Robust 12-wheel drive system for consistent performance
Durable high-speed steel blades for extended service life
Extensive program memory (200 programs)
